COPO/2.9L Magnuson Racing Belt Tensioner

  • 20190530_060343
  • 20190530_060414
  • 20190530_060343
  • 20190530_060414

Description

Introducing our new version COPO tensioner, built for the 2.6L Magnuson Supercharger Winning matters and you know that your factory... read more
SKU:
ARS6218DB
Category:
Brand:
Chevrolet
Weight:
4 lbs
Dimensions:
9 × 5 × 4 in
Bearing Upgrade:

CERAMIC BEARING UPGRADE, NO CERAMIC BEARING UPGRADE

Price

$675.00$825.00

Quantity

- +

Options

Clear

0 reviews

Compare

Choose Options

Description

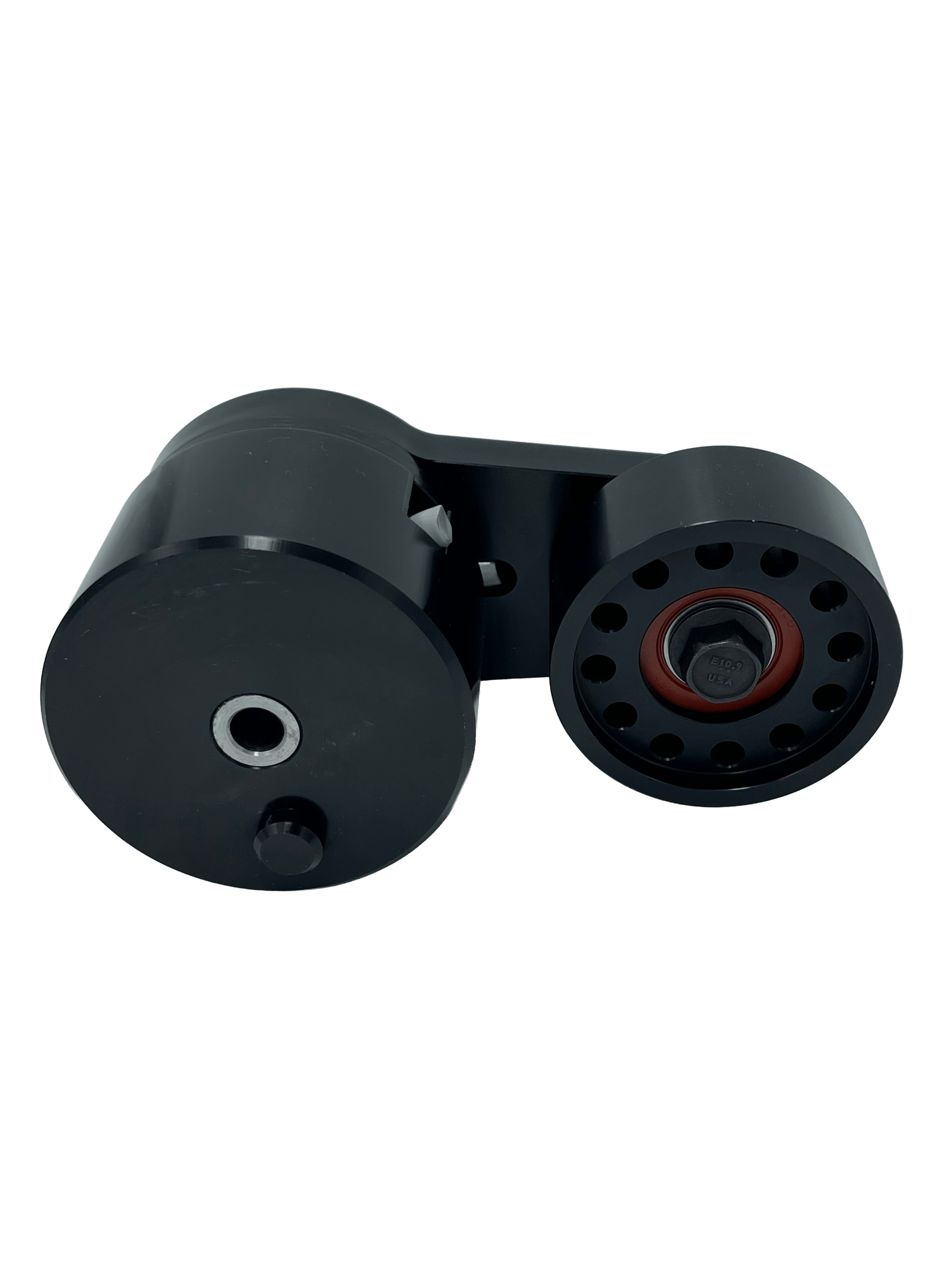

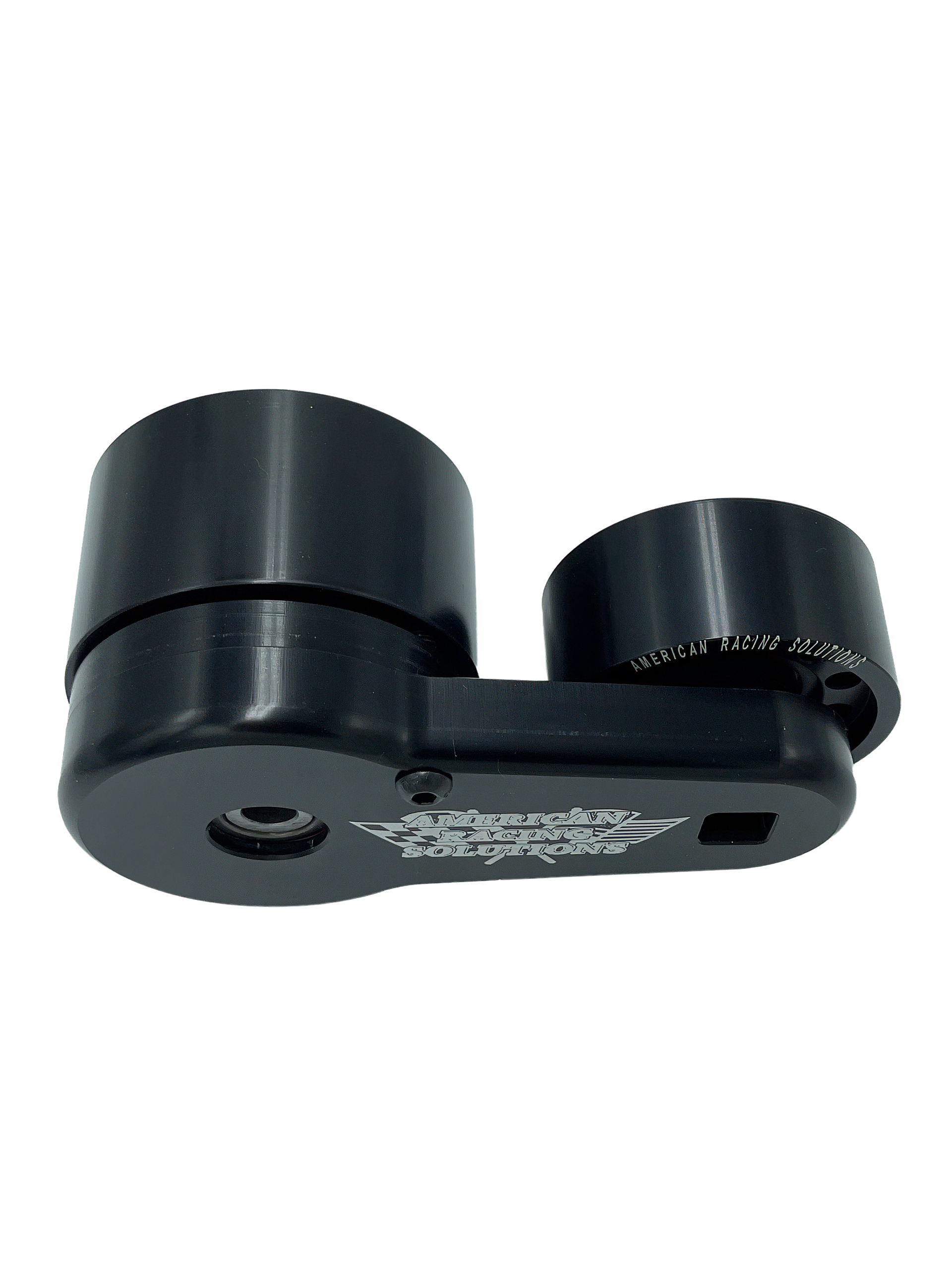

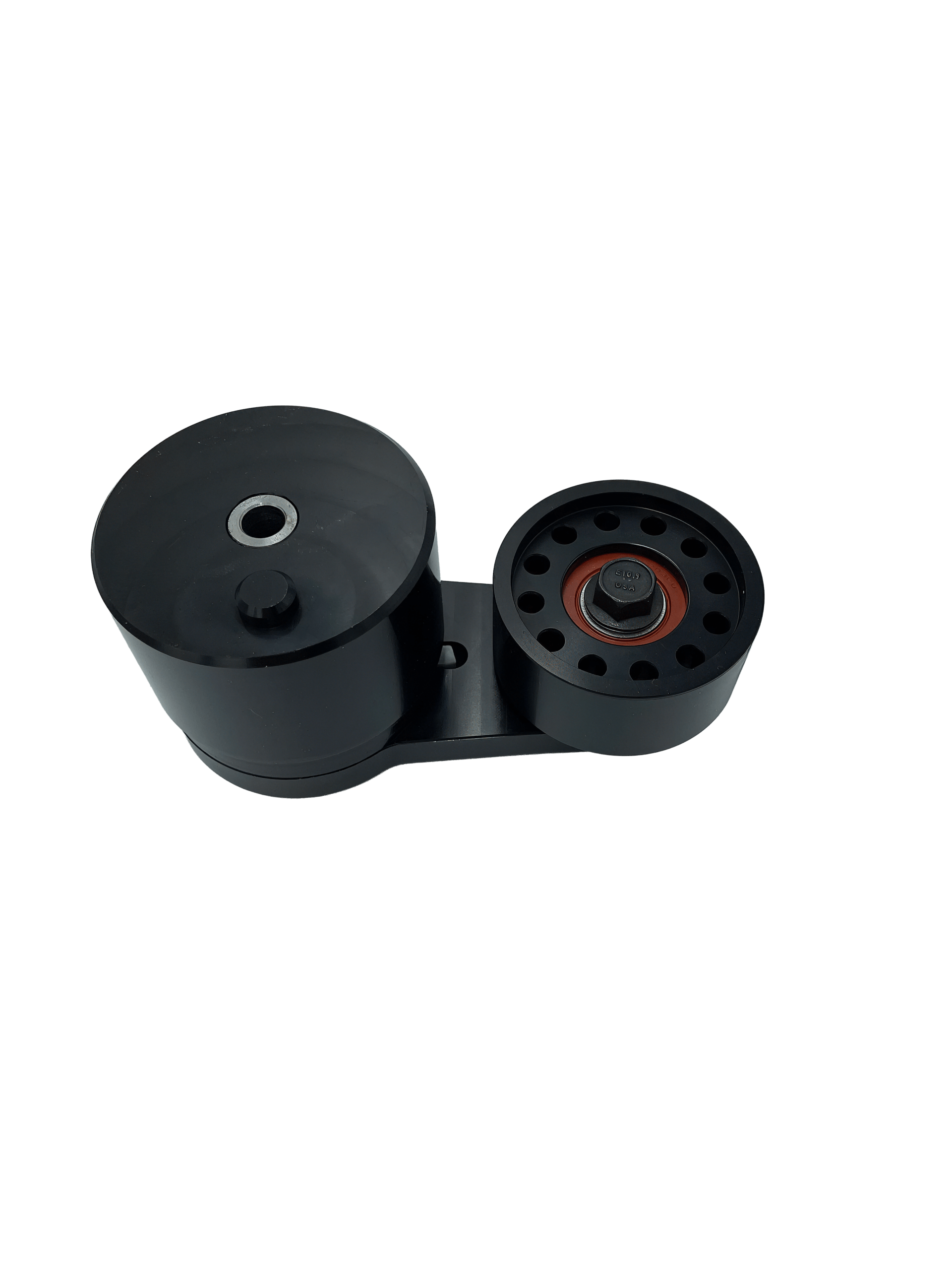

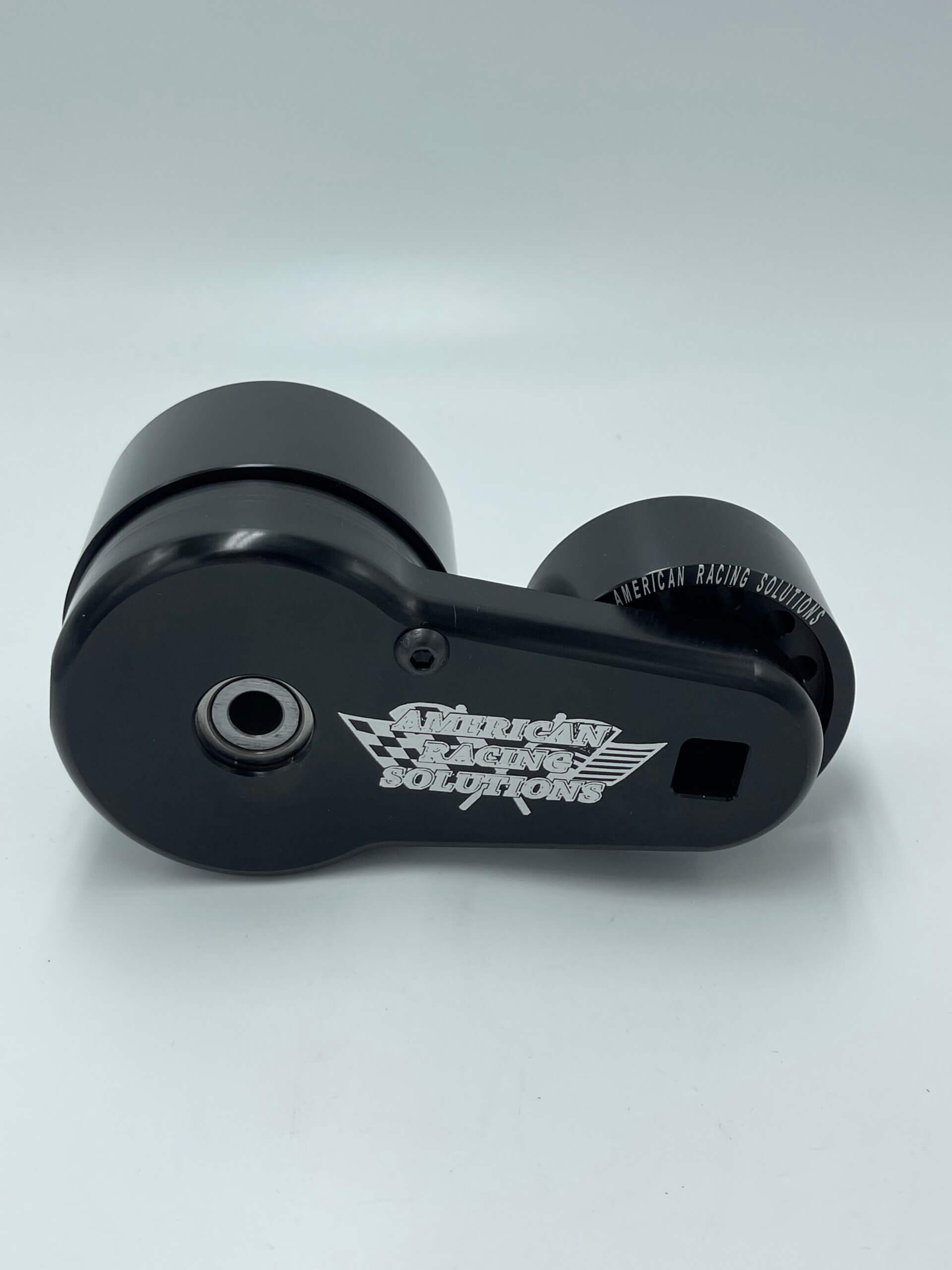

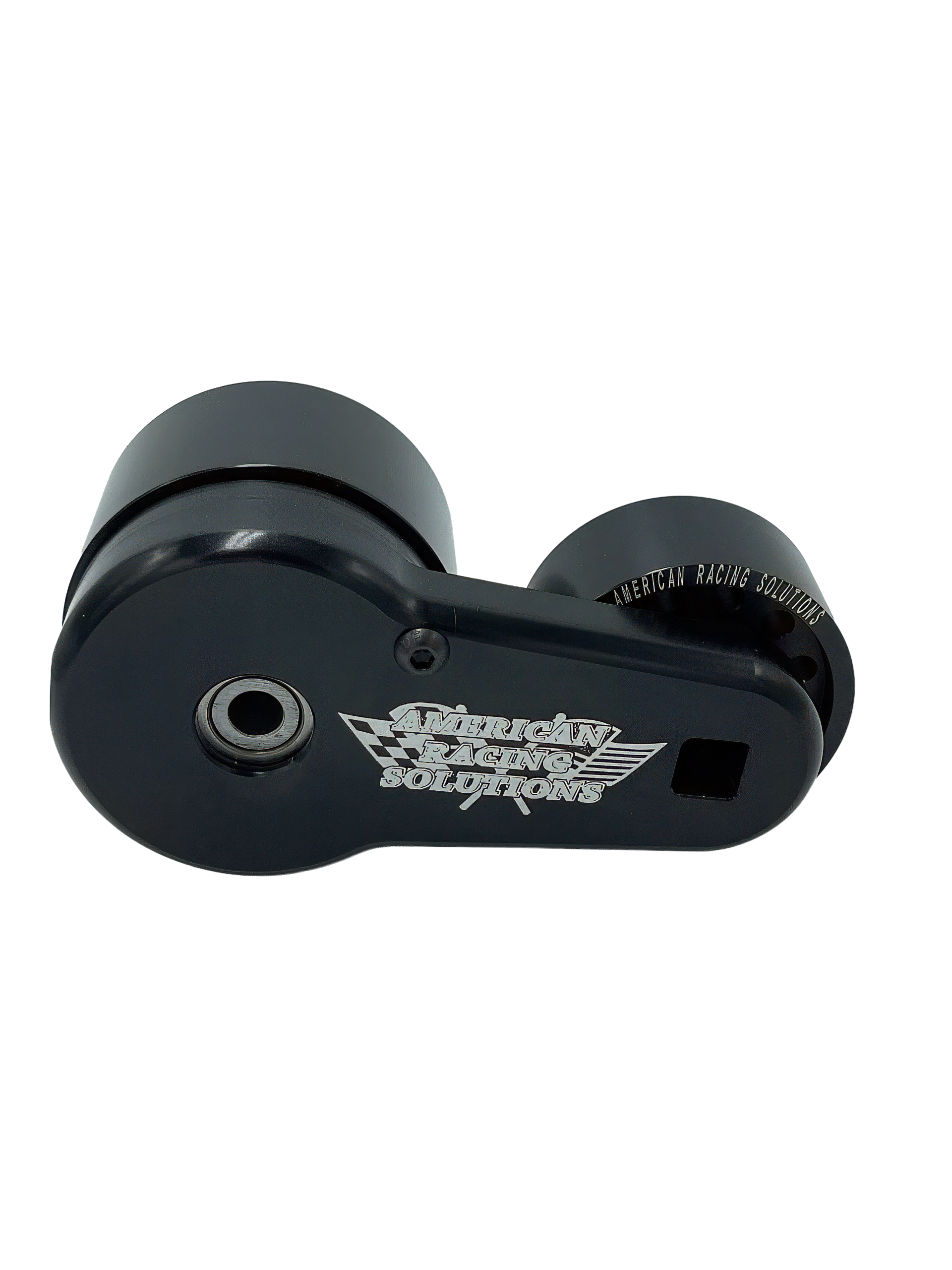

Introducing our new version COPO tensioner, built for the 2.6L Magnuson Supercharger

Winning matters and you know that your factory belt tensioner was not designed to stand up to the stress and strain of the added HP and Torque of a true race car.  Our tensioner is fabricated from 6061-T6 Billet Aluminum, not cast.  Internal components include a TGP shaft, hardened bushings, proprietary spring and thrust bearings make this the strongest and smoothest belt tensioner on the market.  It has been tested and proven on the DYNO and the Track and will reduce if not completely eliminate belt slip, which will increase boost and HP.  Best of all it is a direct bolt on replacement for the stock unit, no brackets, fittings our adapters are needed.  We are so confident that our tensioner will not bend or break that we will guarantee it for the life.

Part #: ARS86200BD

Replaces Dayco Part #: 89270, 89446

30lb Spring

Supplied with 90mm Black Anodized Billet Aluminum Pulley –Double bearing pulley.

Upgrade your pulley to Ceramic Bearings!

Serious racers are constantly pushing the envelope and everyone knows that shaving off .001’s of a second from their ET which translates into more win lights.

Ceramic hybrid bearings use ceramic balls and steel races. Ceramic balls weigh up to 40% less than steel balls, depending on size. This reduces centrifugal loading and skidding, so hybrid ceramic bearings can operate up to 50% faster than conventional bearings. This means that the outer race groove exerts less force inward against the ball as the bearing spins. This reduction in force reduces the friction and rolling resistance. The lighter ball allows the bearing to spin faster and uses less energy to maintain its speed.

Ceramic silicon nitride balls exhibit much greater hardness than steel balls resulting in at least 10 times greater ball life due to the ability to hold the surface finish longer. The ball has dramatically smoother surface properties than the best steel ball resulting in less friction between the balls and bearing race surfaces. Thermal properties are also dramatically improved over steel balls resulting in less heat buildup at high speeds. Ceramic has 35 percent less thermal expansion, 50 percent less thermal conductivity, are lighter weight and are non-corrosive.

Additional information

Weight
4 lbs
Dimensions
9 × 5 × 4 in
Bearing Upgrade

CERAMIC BEARING UPGRADE, NO CERAMIC BEARING UPGRADE
