Coyote Racing Belt Tensioner – Low Profile Black

  • Coyote Tensioner
  • Coyote Tensioner 2
  • Coyote Tensioner
  • Coyote Tensioner 2
SKU:
coyoteLP-NewDesign
Category:
Brand:
Ford
Weight:
2 lbs
Dimensions:
8 × 4 × 4 in
Manufacturer:

Material:

Pulley:

70 MM X 10 Rib Smooth Billet Pulley – Double Bearing, 68 MM X 10 Rib Smooth Billet Pulley – Double Bearing, 60 MM X 10 Rib Smooth Billet Pulley – Double Bearing, 76 MM X 10 Rib Smooth Billet Pulley – Double Bearing, No Pulley

view all details

Price

$425.00$735.00

Quantity

- +

Options

Clear

0 reviews

Compare

Choose Options

Description

NEW DESIGN!!!

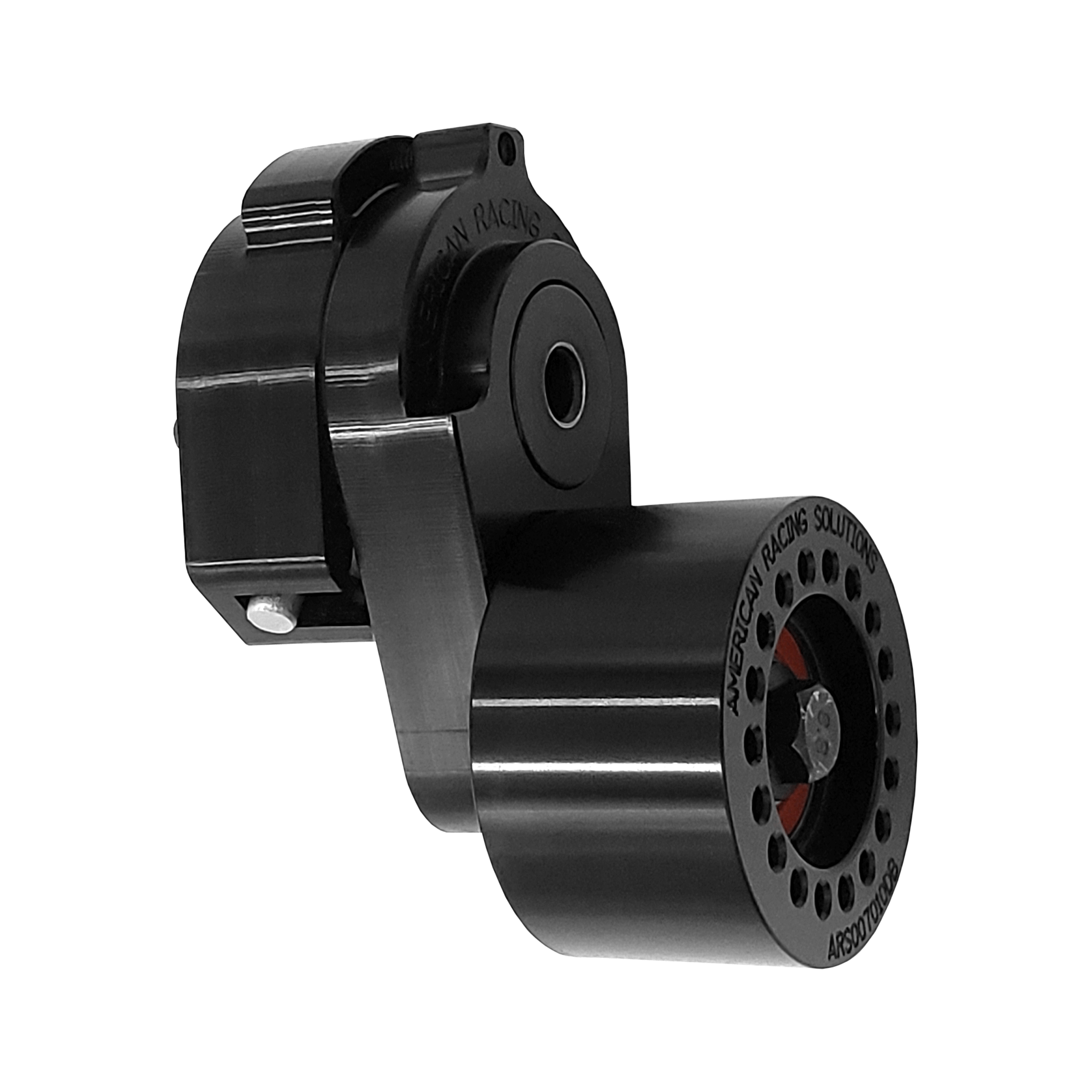

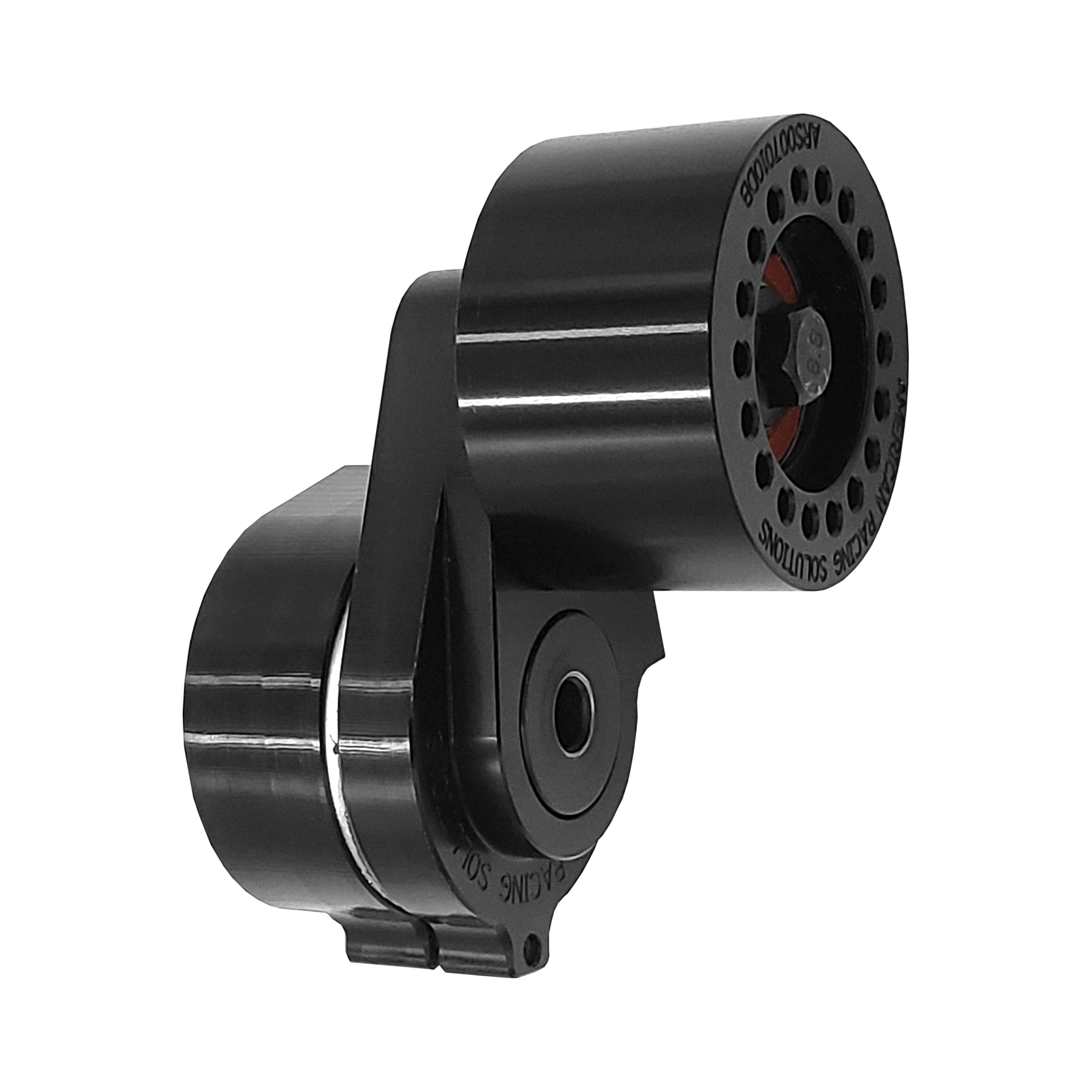

Low Profile Racing Billet Belt Tensioner

If you are running a supercharged 5.0L V8 DOHC then you know that your factory belt tensioner was not designed to stand up to the stress and strain of the added HP and Torque, especially if you are racing.  Our Racing Belt Tensioner is fabricated from 6061-T6 Billet Aluminum, not cast.  Internal components include a TGP shaft, hardened bushings, proprietary spring, and thrust bearings make this the strongest and smoothest belt tensioner on the market.  It has been tested and proven on the DYNO and the Track and will reduce if not completely eliminate belt slip, which will increase boost and HP.  Best of all it is a direct bolt-on replacement for the stock unit, no brackets, fittings, or adaptors are needed.  We are so confident that our tensioner will not bend or break that we will guarantee it for the life.

Contact us today with any questions regarding this product!

Requires Double Bearing Pulley – Sold Separately

Replaces Genuine Ford part – BT103, BR3Z6B209H

Progressive Spring Tension Starting at 28 – 30 LBS

Will fit with 20% Oversized Damper

Black Anodized

Shipping Weight 3lbs.

Box Size 8x4x4

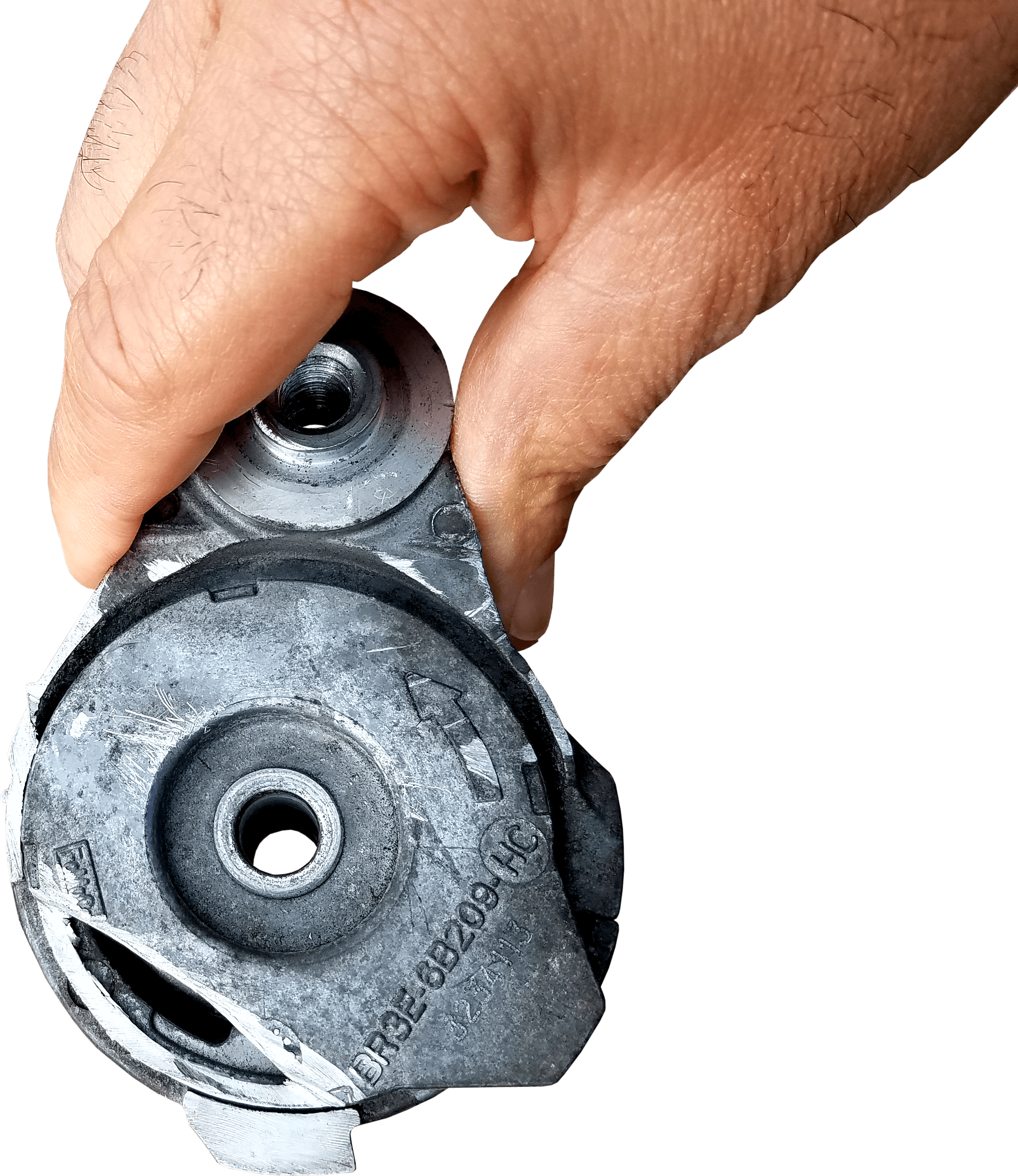

No more grinding the stock tensioner:

Upgrade your pulley to Ceramic Bearings!

Serious racers are constantly pushing the envelope and everyone knows that shaving off .001’s of a second from their ET which translates into more win lights.

Ceramic hybrid bearings use ceramic balls and steel races. Ceramic balls weigh up to 40% less than steel balls, depending on size. This reduces centrifugal loading and skidding, so hybrid ceramic bearings can operate up to 50% faster than conventional bearings. This means that the outer race groove exerts less force inward against the ball as the bearing spins. This reduction in force reduces friction and rolling resistance. The lighter ball allows the bearing to spin faster and uses less energy to maintain its speed.

Ceramic silicon nitride balls exhibit much greater hardness than steel balls resulting in at least 10 times greater ball life due to the ability to hold the surface finish longer. The ball has dramatically smoother surface properties than the best steel ball resulting in less friction between the balls and bearing race surfaces. Thermal properties are also dramatically improved over steel balls resulting in less heat buildup at high speeds. Ceramic has 35 percent less thermal expansion, 50 percent less thermal conductivity, is lighter weight, and is non-corrosive.

We are so confident that our Street Performance Belt Tensioners are the strongest and most reliable on the market that we guarantee our product for life against bending or breaking under normal use.

Additional information

Weight
2 lbs
Dimensions
8 × 4 × 4 in
Manufacturer

Material

Pulley

70 MM X 10 Rib Smooth Billet Pulley – Double Bearing, 68 MM X 10 Rib Smooth Billet Pulley – Double Bearing, 60 MM X 10 Rib Smooth Billet Pulley – Double Bearing, 76 MM X 10 Rib Smooth Billet Pulley – Double Bearing, No Pulley

Pulley Options

Ceramic Bearings, No Ceramic Bearings
